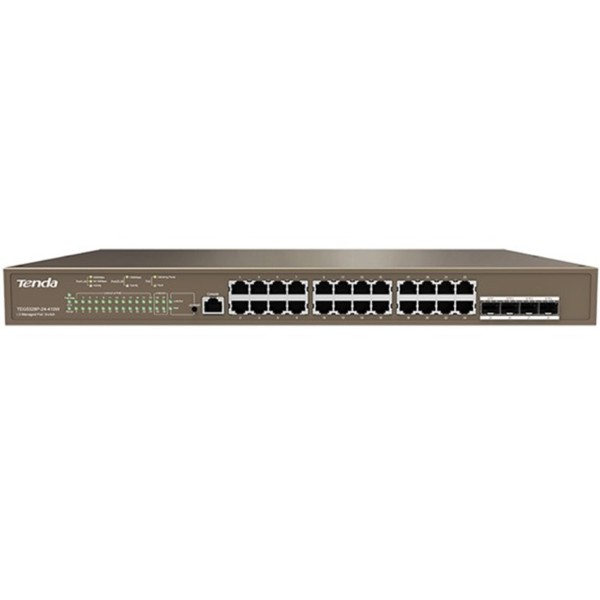

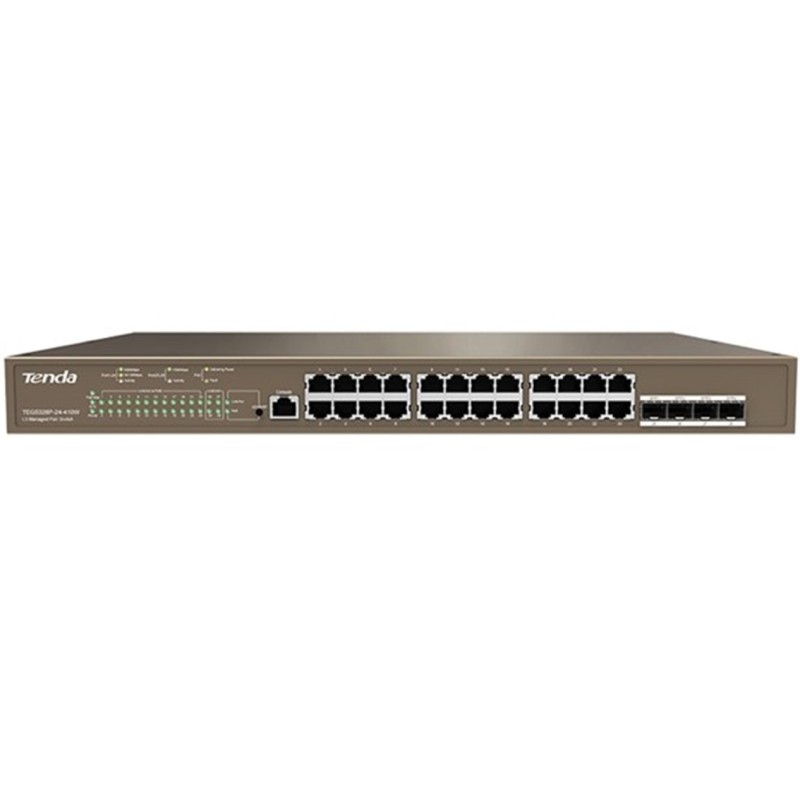

Switch 24 puertos gigabit ethernet 10 - 100 - 1000 tenda

Model
TEG5328P-24-410W
Estándar de red
IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x IEEE802.3af/at
IEEE802.1pIEEE802.1q IEEE802.1w IEEE802.1d IEEE802.1s
LED
One Link/Act or PoE LED indicator for each port
One Link/One Link/Act mode converting LED indicator for each device
One PoE mode converting LED indicator for each device
One PoE Max LED indicator for each device
One Power LED indicator for each device
One SYS LED indicator for each device
Interfaz
24 x 10/100/1000 Base-T Ethernet ports
4 x 1000 Base-X SFP ports
1 x Console port
Fan Quantity
2
PoE budget
Lightning protection for ports: 6kV (common mode)
Lightning protection for power: 6kV (common mode), 4kV (differential mode)
ESD:
Air discharge: 8kV
Contact discharge: 6kV
Modo de reenvío
Store-and-forward
Capacidad de conmutación
56Gbps
Velocidad de reenvío de paquetes
41.7Mpps
Packet forwarding rate
12Mb
Tabla de direcciones MAC
16K
Trama gigante
10K
Buffer
Support
PoE power supply
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
Voltaje de entrada
100-240V AC 50/60Hz
Consumo de potencia
Full load: 432W
Empty load: 23W
Dimensiones
440 mm x 284 mm x 44 mm(L*W*H)
Opciones de montaje
Desktop mounting
Rack mounting (19" 1U)
Wall mounting
Energy Efficient
Support
Entorno
Operating temperature: 0C - 45
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
Certificaciones
CCCFCCCERoHS
L3 Features
Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP
PoE Supply
Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)
Security features
ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius authentication
VLAN
IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid
DHCP
DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration
Agregación de puertos
Static aggregation
LACP dynamic aggregation
Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics
Multidifusión
IGMP Snooping V1/V2/V3
Supports port fast leave
Creación de reflejos de puertos
Supports N: 1 port mirroring
QoS
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8 queue service quality mapping
ACL
Supports MAC ACL and IP ACL
Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export
Management and maintenance
Supports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
