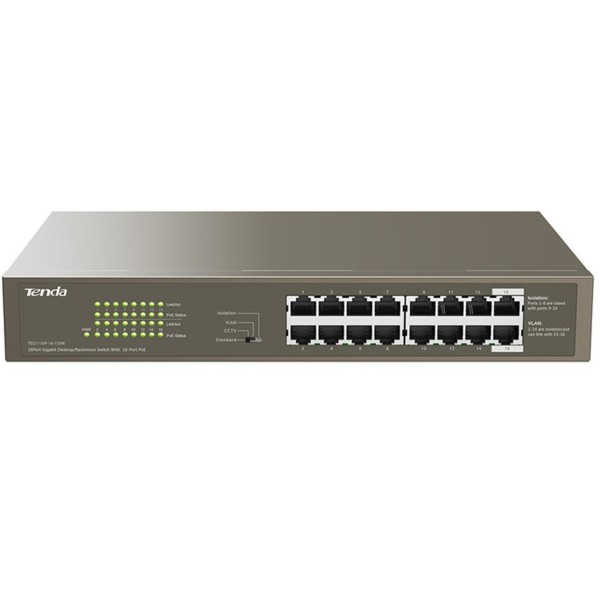

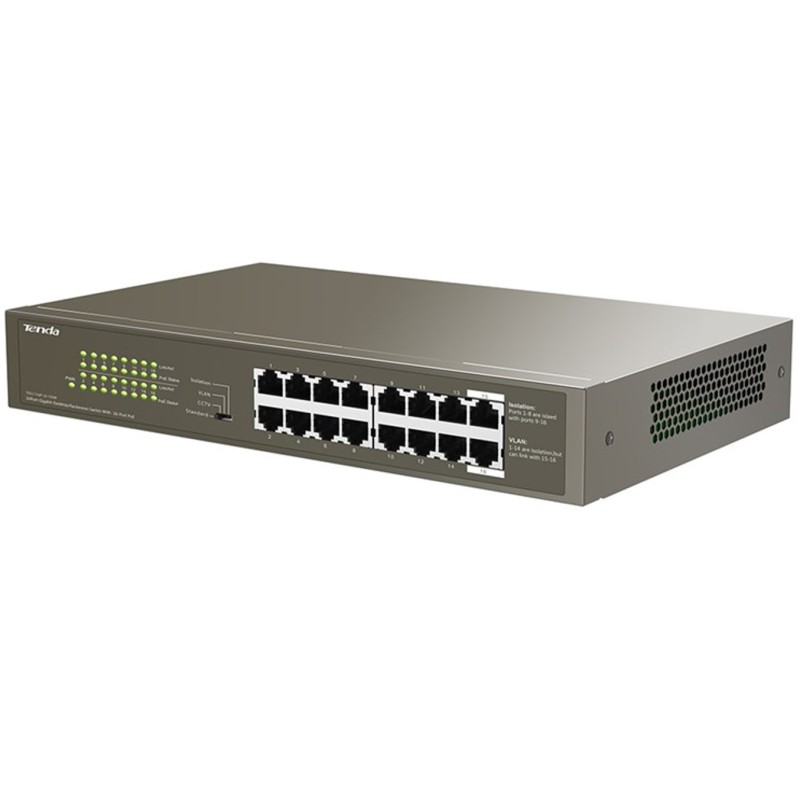

Switch 16 puertos gigabit ethernet 10 - 100 - 1000 tenda

Estándar y protocolo
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicadores
16*Link/Act per device
16*PoE per device
1*Power per device
Interfaz
16 10/100/1000Base-T ports(Data/Power)
Protección contra rayos
6KV
Almacenamiento y retransmisión
Yes
capacidad de intercambio
32 Gbps
Velocidad de reenvío de paquetes
23.6Mpps
RAM Data Buffer
4Mb
Tabla de direcciones MAC
4K
Administración de alimentación PoE
Port 1-16 support IEEE802.3at/af PoE standard
PoE through pin
1 2 4 5 +
3 6 7 8 -
Voltaje de entrada
AC 100-240V50/60Hz
Dimensiones
294*178*44mm ( W x D x H )
Consumo de potencia
in full configuration: <, 150W
PoE Max Power Supply:135W
Características de los puertos
Standard: the switch functions as a common unmanaged switch and all the
ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities
over the other ports. All the ports of the switch can communicate with each
other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with
ports 15 and 16 (uplink ports) respectively.
Isolation: ports 1 to 8 and Ports 9 to 16 belong to two di erent VLAN.This mode
can be used to isolate supervision network and wireless network to make
them not interfere with each other.
Entorno
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
