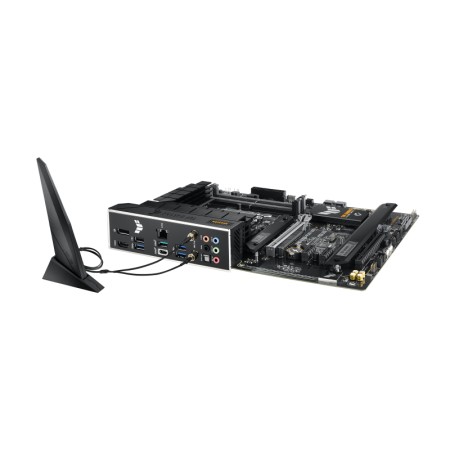

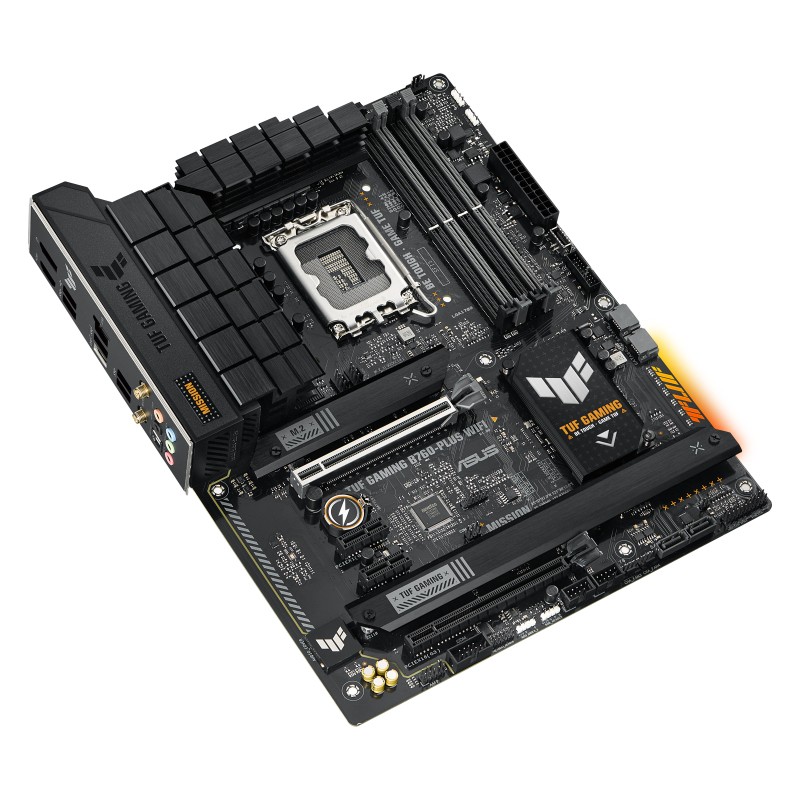

ASUS TUF Gaming B760-Plus WIFI. Fabricante de procesador: Intel, Socket de procesador: LGA 1700, Procesador compatible: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7. tipos de memoria
compatibles: DDR5-SDRAM, Memoria interna máxima: 128 GB, Tipo de ranuras de memoria: DIMM. Interfaces de disco de almacenamiento soportados: M.2, PCI Express 3.0, PCI Express 5.0, SATA III,
Tipos de unidades de almacenamiento admitidas: HDD & SSD, Niveles RAID: 0, 1, 5, 10. Tipo de interfaz ethernet: 2.5 Gigabit Ethernet, Estándar Wi-Fi: Wi-Fi 6E (802.11ax), Wi-Fi estándares: 802.11a,
802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Componente para: PC, Factor de forma: ATX, Familia del chipset: Intel
Procesador
Fabricante de procesador
The manufacturer that produced the processor.
Intel
Socket de procesador
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Procesador compatible
A processor which is compatible with this device
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7
Máx.número de procesador SMP 1
Sockets de procesador soportados
The sockets (plugs) for processors that are supported (can be used) by the device.
LGA 1700
Memoria
tipos de memoria compatibles
Types of memory which can be used with the product.
DDR5-SDRAM
Número de ranuras de memoria 4
Tipo de ranuras de memoria
A memory slot
DIMM
Canales de memoria Doble canal
ECC ompatibility No-ECC
Velocidad del reloj de memoria máxima admitida 5066 MHz
Memoria interna máxima
The maximum internal memory which is available in the product.
128 GB
Memoria sin buffer
Reguladores del almacenaje
Tipos de unidades de almacenamiento admitidas
The type of storage drives the device is compatible with.
HDD & SSD
Interfaces de disco de almacenamiento soportados M.2, PCI Express 3.0, PCI Express 5.0, SATA III
Número de HDDs soportados
The total number of hard drives that can be used in/with this product.
4
Número de unidades de almacenamiento compatibles
How many storage drives can be fit into the product at once.
7
Compatibilidad con RAID
The device uses RAID
Niveles RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one
of several ways
0, 1, 5, 10
Gráficos
Soporte para proceso paralelo
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
No compatible
Interno I/O
USB 2.0, conectores
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Conectores USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
2
Número de conectores SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x)
interface
4
S/PDIF, conector de salida
Conector de audio en panel frontal
Conector de panel delantero
Conector de potencia ATX (24 pines)
Conector de ventilador CPU
Número de conectores a ventilador de chasis 3
Conectores de poder (4 pin) periferales (Molex)
White 4-pinned connector used to connect a peripheral to the power supply.
1
Conector de energía EPS (8-pin)
Número de conectores COM 1
Conector TPM
Encabezados Thunderbolt 1
Conector eléctrico de 12 V
Conector para tiras LED RGB
Panel trasero Puertos de I/O (entrada/salida)
Cantidad de puertos USB 2.0
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
2
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) 1
Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) 2
anel trasero Puertos de I/O (entrada/salida)
Número de puertos USB 3.2 Gen 2x2 Tipo C 1
Ethernet LAN (RJ-45) cantidad de puertos
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Cantidad de puertos VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Número de puertos HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and
compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Versión HDMI 2.1
Cantidad de DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display
device such as a computer monitor
1
Versión de DisplayPort 1.4
Salidas para auriculares
Number of sockets /ports where headphones are connected.
1
Entrada de línea
Conexión
Ethernet
An Ethernet LAN (Local Area Network) interface is present
Tipo de interfaz ethernet 2.5 Gigabit Ethernet
Wifi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Estándar Wi-Fi
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 6E (802.11ax)
Wi-Fi estándares
The type of wireless local area network (LAN). It can be ad-hoc
802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers
Versión de Bluetooth
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.2
Características
Chipset
The chipset connects the microprocessor to the rest of the motherboard.
Intel B760
Canales de salida de audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canales
Componente para
What this product is used as a part of (component for).
PC
Factor de forma
Design of the motherboard (ATX
ATX
Familia del chipset
The category of motherboard chipset e.g. Intel
Intel
Tipo de enfriamiento
The method used to cool the device or to cool the air around the device.
Pasivo
Alimentación
What the power source is.
ATX
Sistema operativo Windows soportado
Windows vesions wich can be used with the device.
Windows 10, Windows 11
Ranuras de expansión
PCI Express x1 (Gen 3.x) ranuras 2
Ranuras PCI Express x16 (Gen 4.x) 1
Ranuras PCI Express x16 (Gen 5.x) 1
Número de ranuras M.2 (M) 3
BIOS
Tipos de BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
BIOS, tamaño de memoria 128 MB/s
Empaquetado
Ancho del paquete
The distance from one side of the packaging to the other.
328 mm
Profundidad del paquete
The distance from the front to the back of the packaging.
266 mm
Altura del paquete
The distance from the top to the bottom of the packaging.
53 mm
Peso del paquete
Weight of the packaged product.
1,16 kg
Peso y dimensiones
Ancho
The measurement or extent of something from side to side.
305 mm
Profundidad
The distance from the front to the back of something.
244 mm
Contenido del embalaje
Cables incluidos SATA
